TEKNA ADVANCE
Product Details

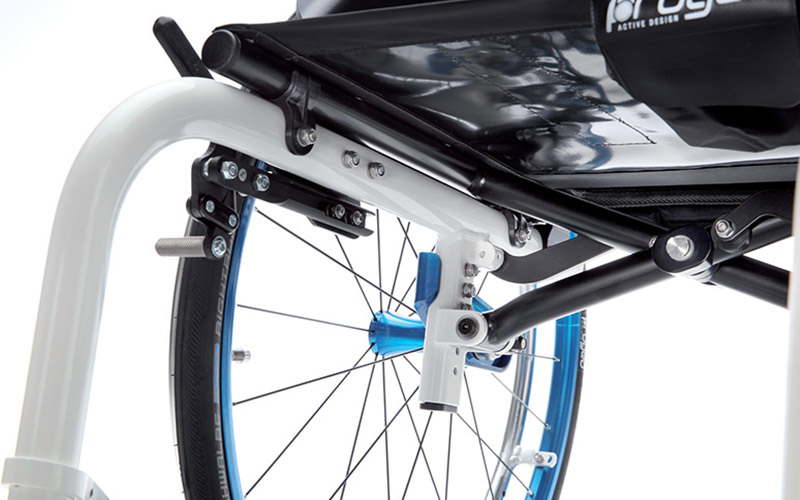

The 2014 version is presented with a more dynamic design, with new innovative technical solutions, with a crossbar folding system hidden under the seat and with a noticeable reduction of the total weight.
 |
Seat width 36 - 39 - 42 - 45 - 48 cm |
 |
Backrest height From 24,5 to 47,5 cm Adjustable |
 |
Encumbrance 28 cm approx. (with 0° camber) |
||
 |
Seat depth 35 - 37,5 - 40 - 42,5 45 - 47,5 cm |
 |
Front frame angle 90° 100° 95° 110° 120° (with removable footplate) |
 |
Backrest angle 84° 90° 96° Adjustable |
||
 |
Seat height Front from 40 to 58 cm Rear from 38 to 46 cm Adjustable |
 |
Total length 85 cm approx. |
 |
Camber 0° 2° 4° |
||
 |
Footplate distance From 35 to 54 cm Adjustable |
 |
Total width Seat width + 17 cm (with 0° camber) |
 |
Wheelchair weight Starting from 10.2 kg approx. Starting from 11.2 kg approx. (with removable footplate) |
||
 |
Weight without rear wheels Starting from 7.6 kg approx. Starting from 8.6 kg approx. (with removable footplate) |
